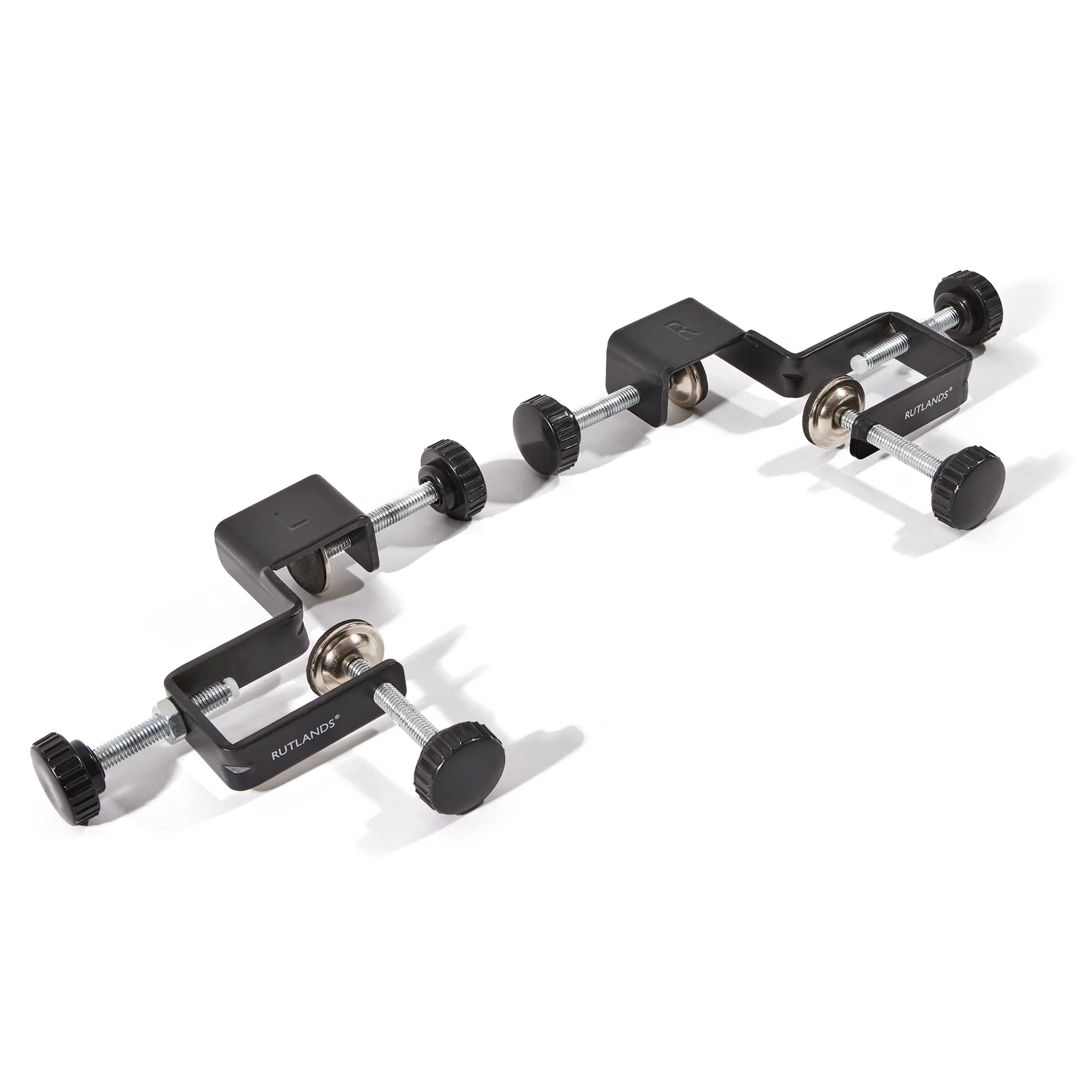

These easy to use drawer front installation clamps provide an extra pair of hands to both hold and securely align your drawer fronts, leaving both hands free to fix the front to the drawer.

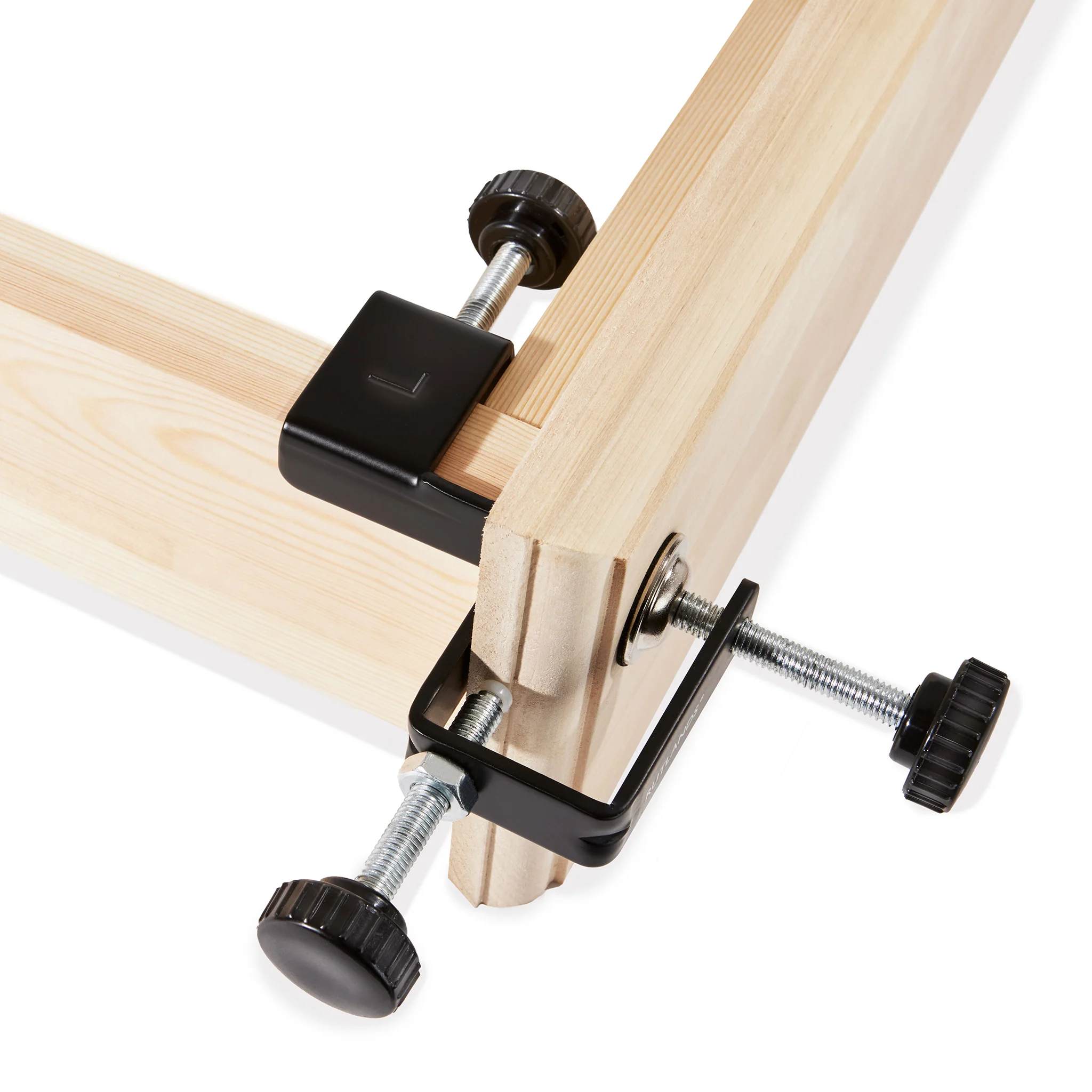

Each clamp is marked for left or right hand use, and sits over the side of the drawer, clamped securely in place using the soft, no-mar clamping faces. You then present the drawer front to the drawer, clamping it in place lightly to allow adjustment. The side mounted micro adjusters then allow you to carefully set the overlay each side, and once set can be locked in place for repeatability during batch work. The nylon tipped faces of the side adjusters ensures no marking to the sides of delicate or veneered drawer fronts. With the drawer front aligned, tighten the clamping bolts to hold it securely in place. The thin profile design of these clamps then allows the drawer to be closed whilst the clamps are still installed, allowing you to step back and check the drawer front alignment prior to fixing it in place.

The maximum drawer side and drawer front thickness is 29mm, with a maximum allowed drawer front side overlay of 44.5mm. The minimum drawer box width for use with these clamps is 230mm. To allow clearance for the clamps, drawer slides must be at least 17mm below the top of the drawer box. Each clamp is constructed from heavy gauge steel to resist flexing under load, and features a tough, powder coated finish. Supplied as a set of 2. ©
