These 4 way panel clamps exert equal pressure in four directions: up, down, left and right, ensuring stock stays flat and eliminating the risk of warping or misalignment during panel assembly. Applying pressure to both the edges and the faces of boards vastly reduces the number of clamps required, speeding up panel assembly, whether gluing up tabletops, furniture panels or cabinet doors.

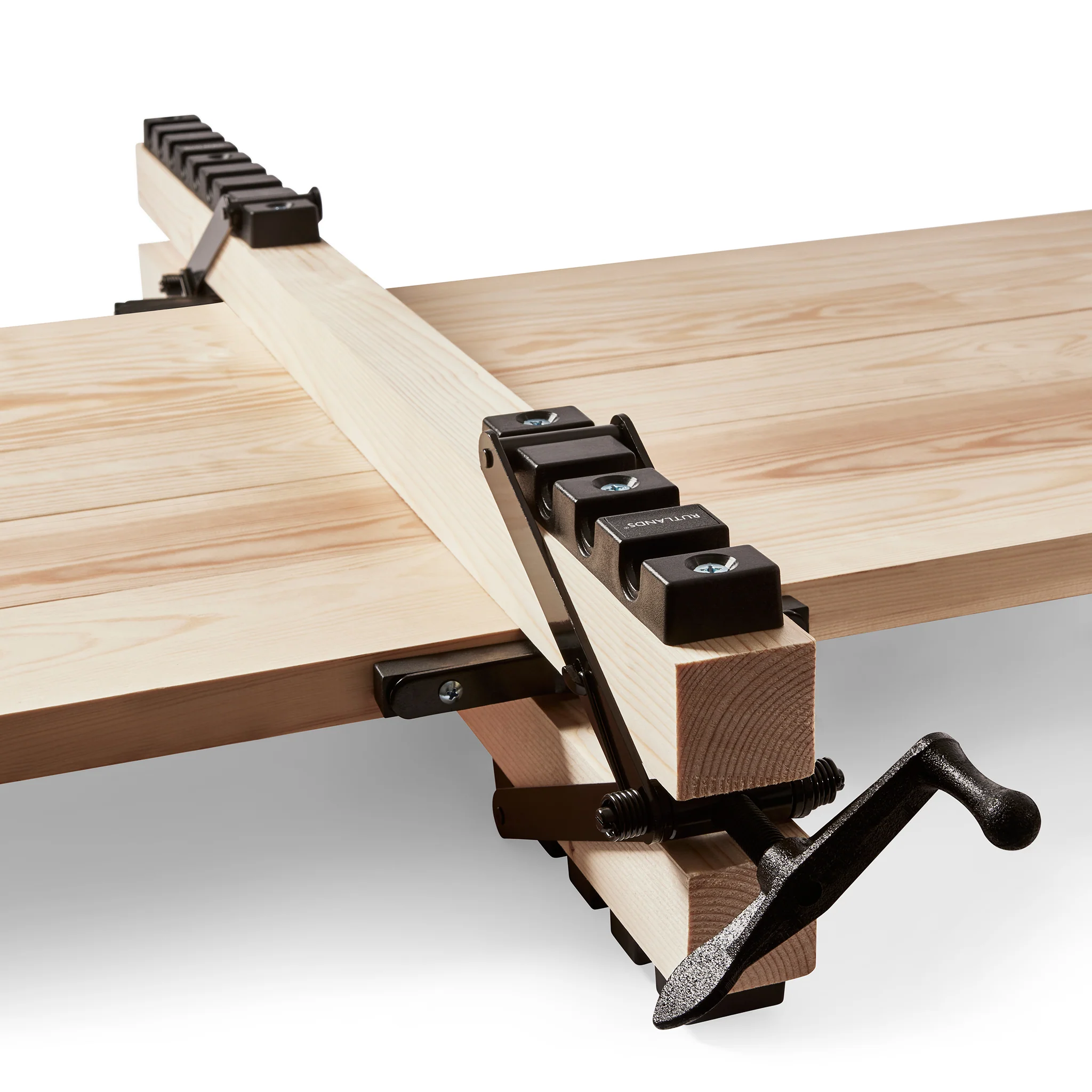

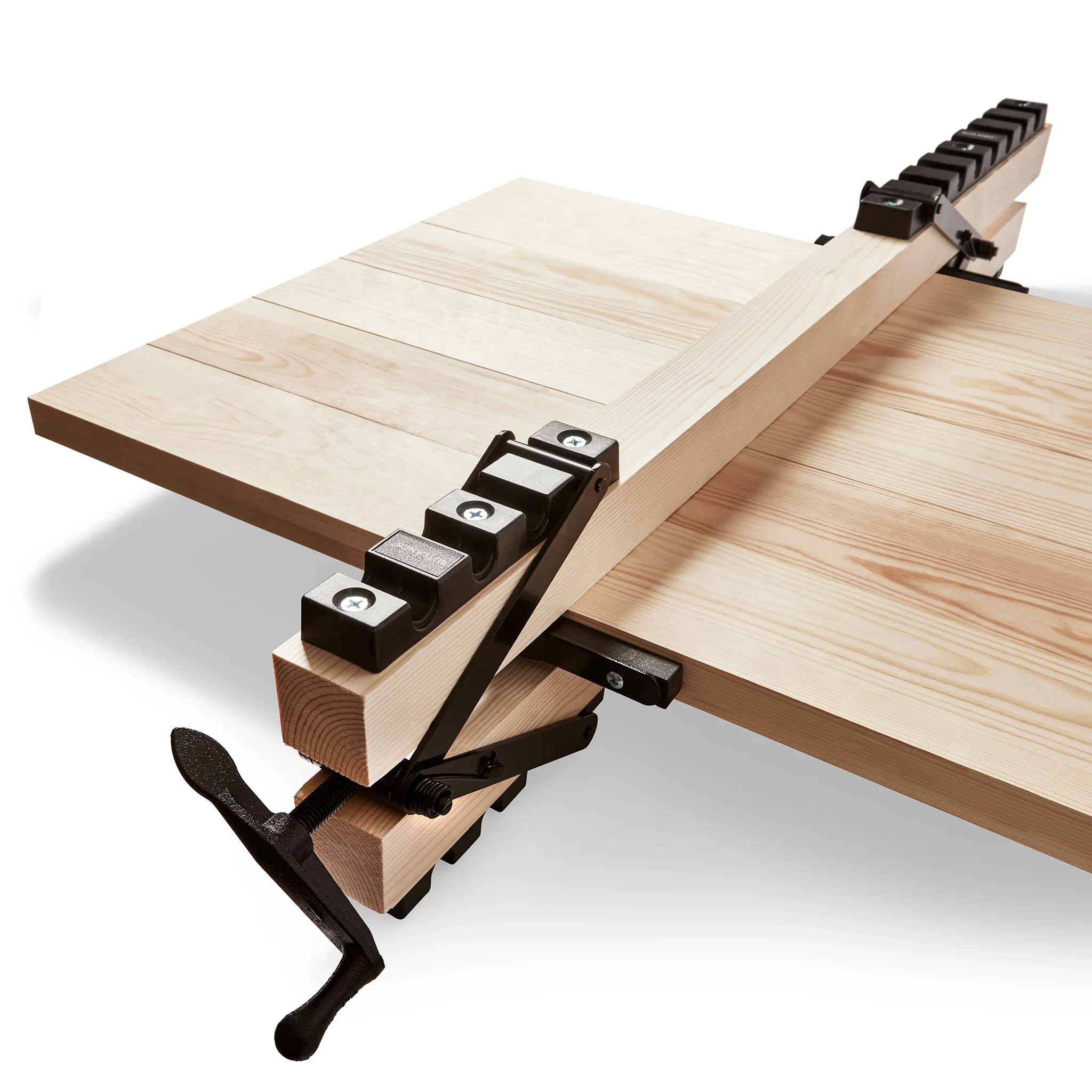

Easy to use, simply attach the clamps to any length of 50mm by 50mm timber with the supplied hardware, position the turn handle mechanism and rotate to exert pressure on the workpiece. Soft-faced jaw pads at each end of the clamp ensure no marking of the workpiece. The notched bars are constructed from a durable, heavy duty composite and designed to withstand the heavy clamping pressure exerted by the steel clamping mechanisms. The clamps will accommodate boards up to 150mm in thickness, and with 12 notches top and bottom, each clamp can be quickly repositioned to suit the width of the workpiece.

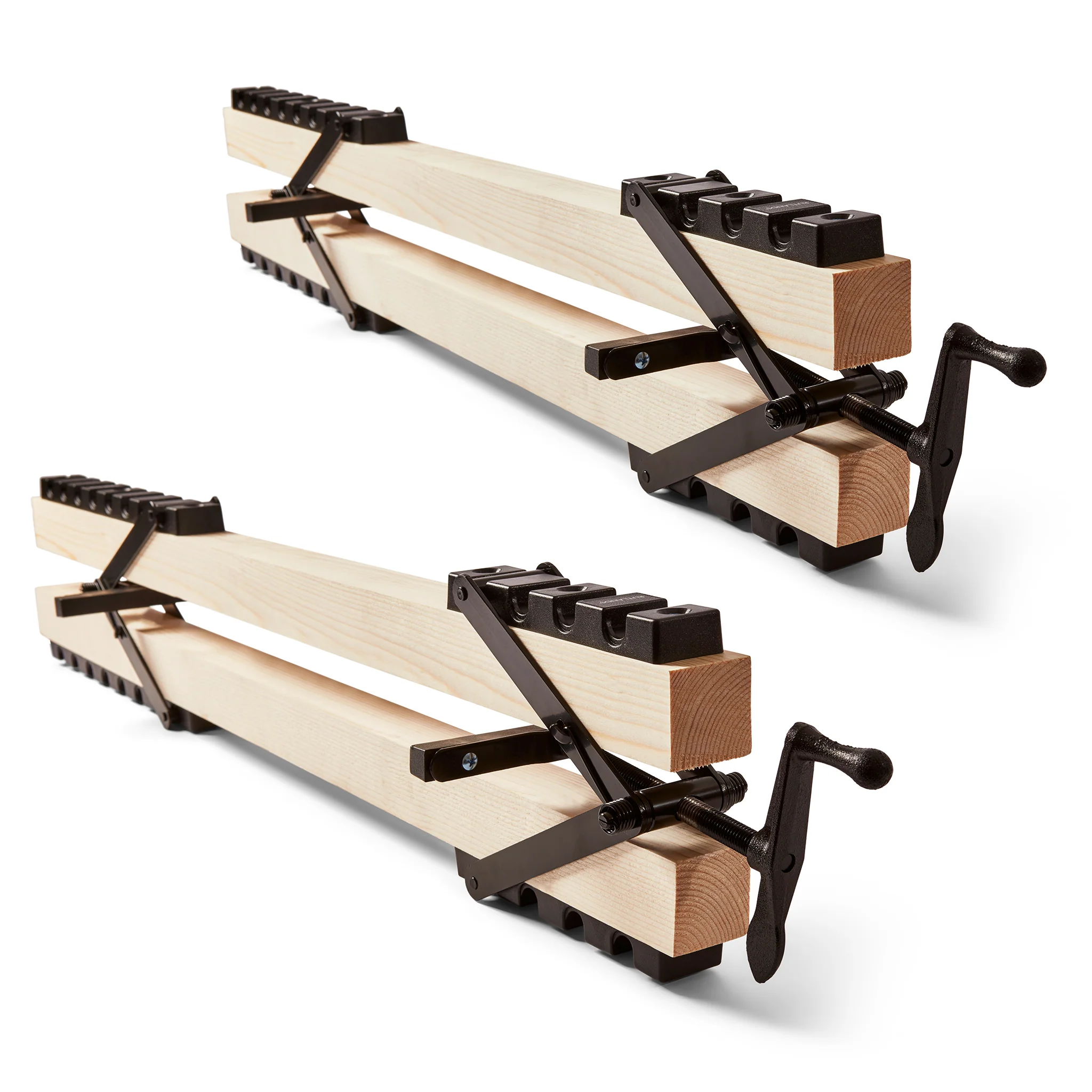

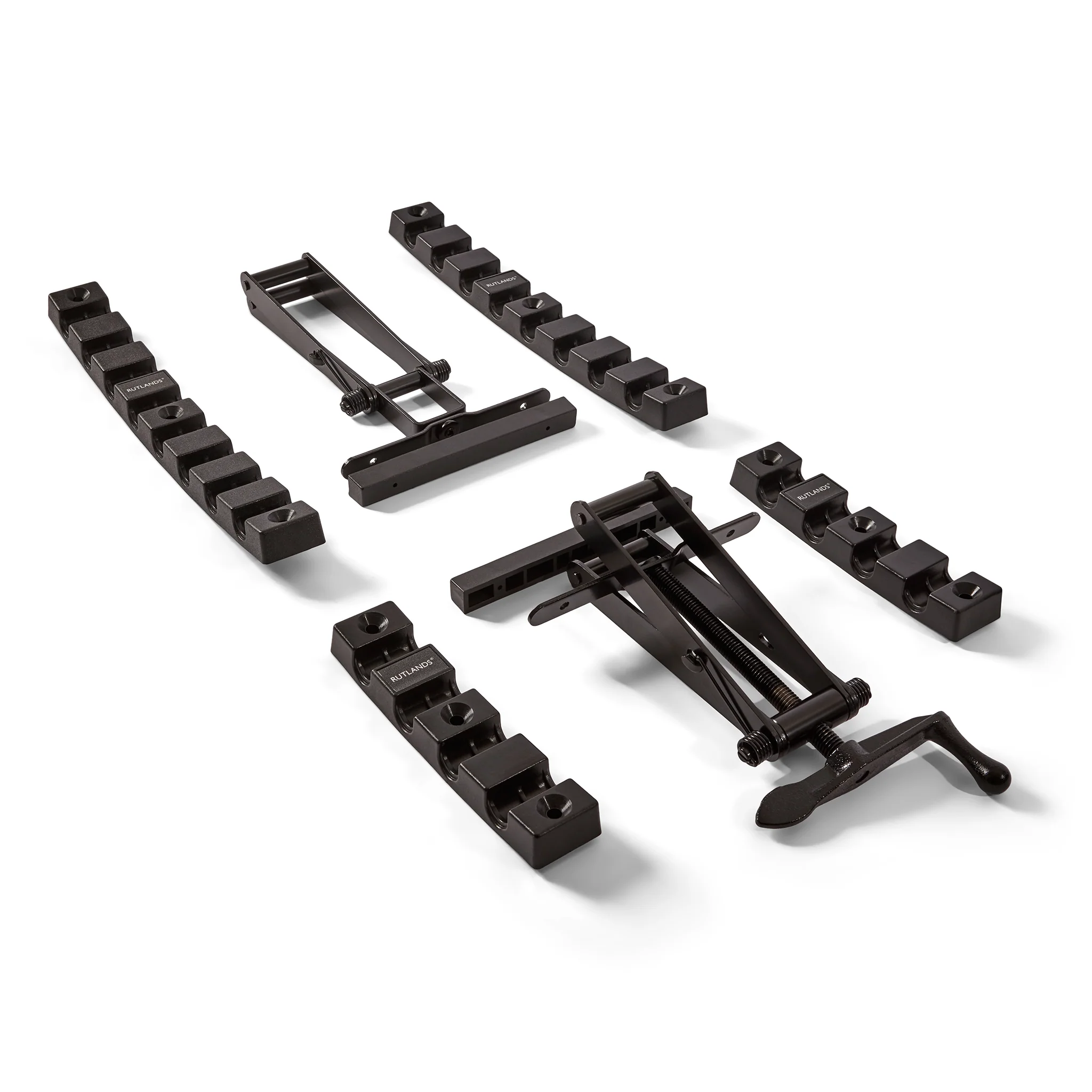

To ensure even pressure is maintained throughout the full length of the panel, it is recommended that the 4 way clamps are set at intervals of no more than 300mm. This pack contains hardware to create two complete 4 way panels clamps (two heads and two tails). ©
