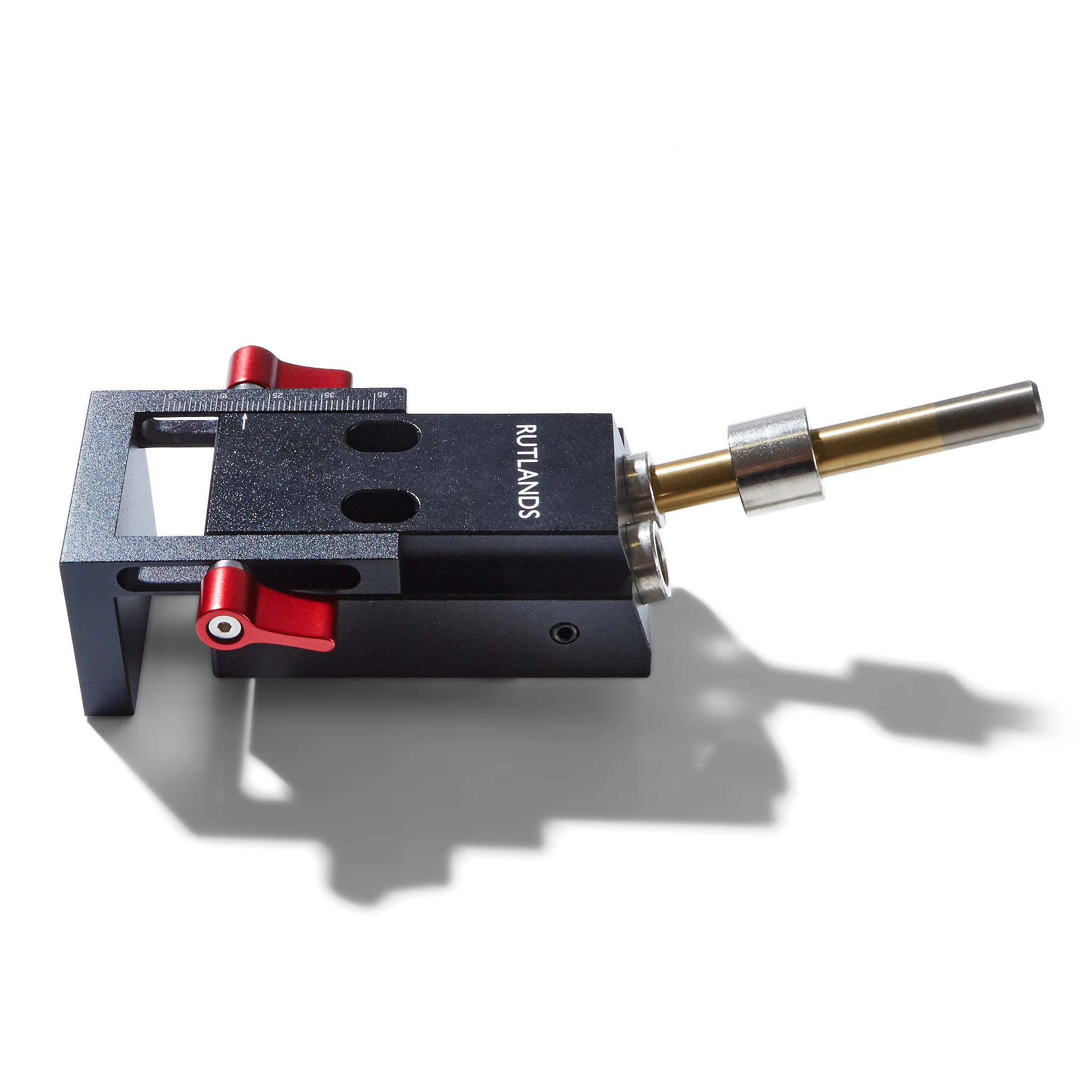

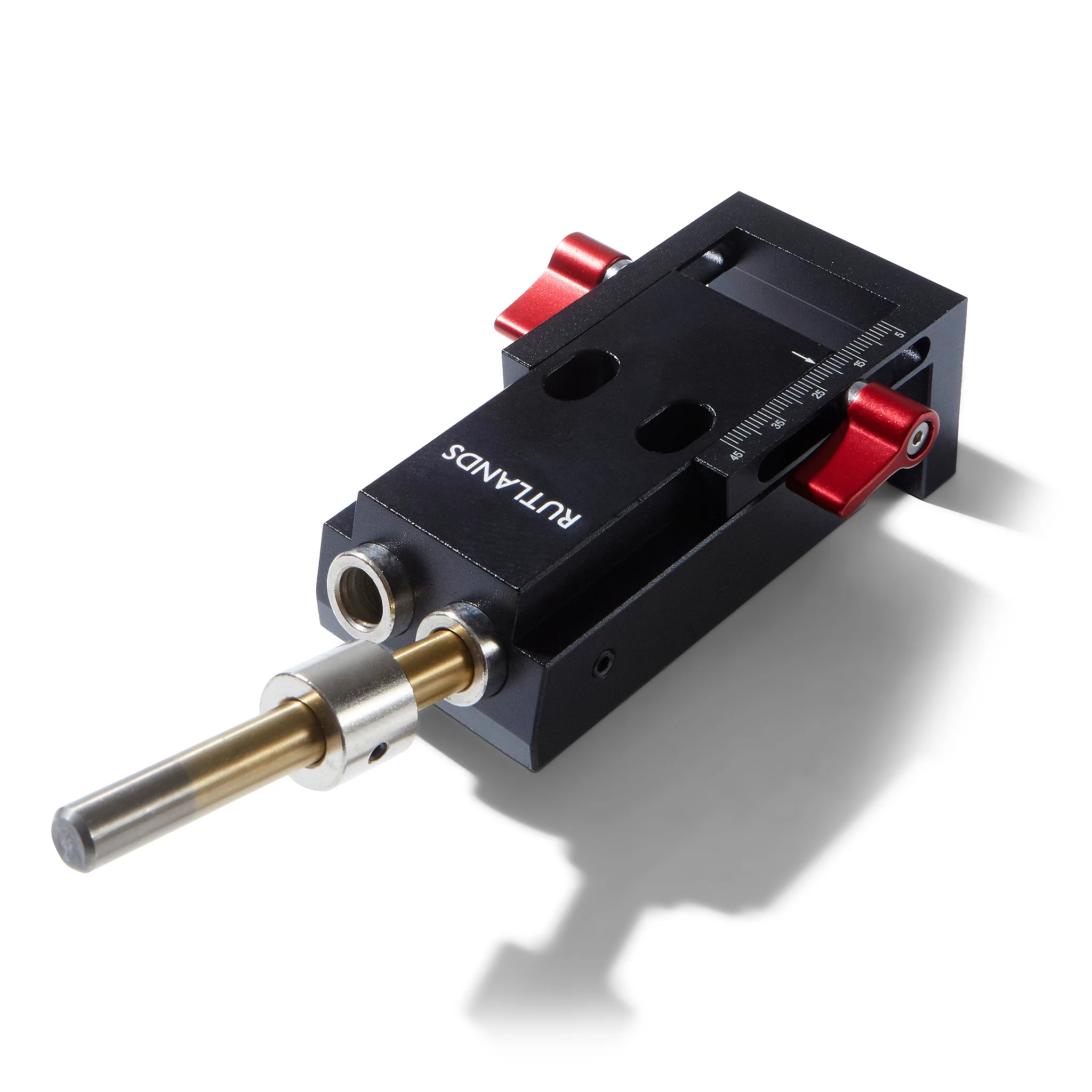

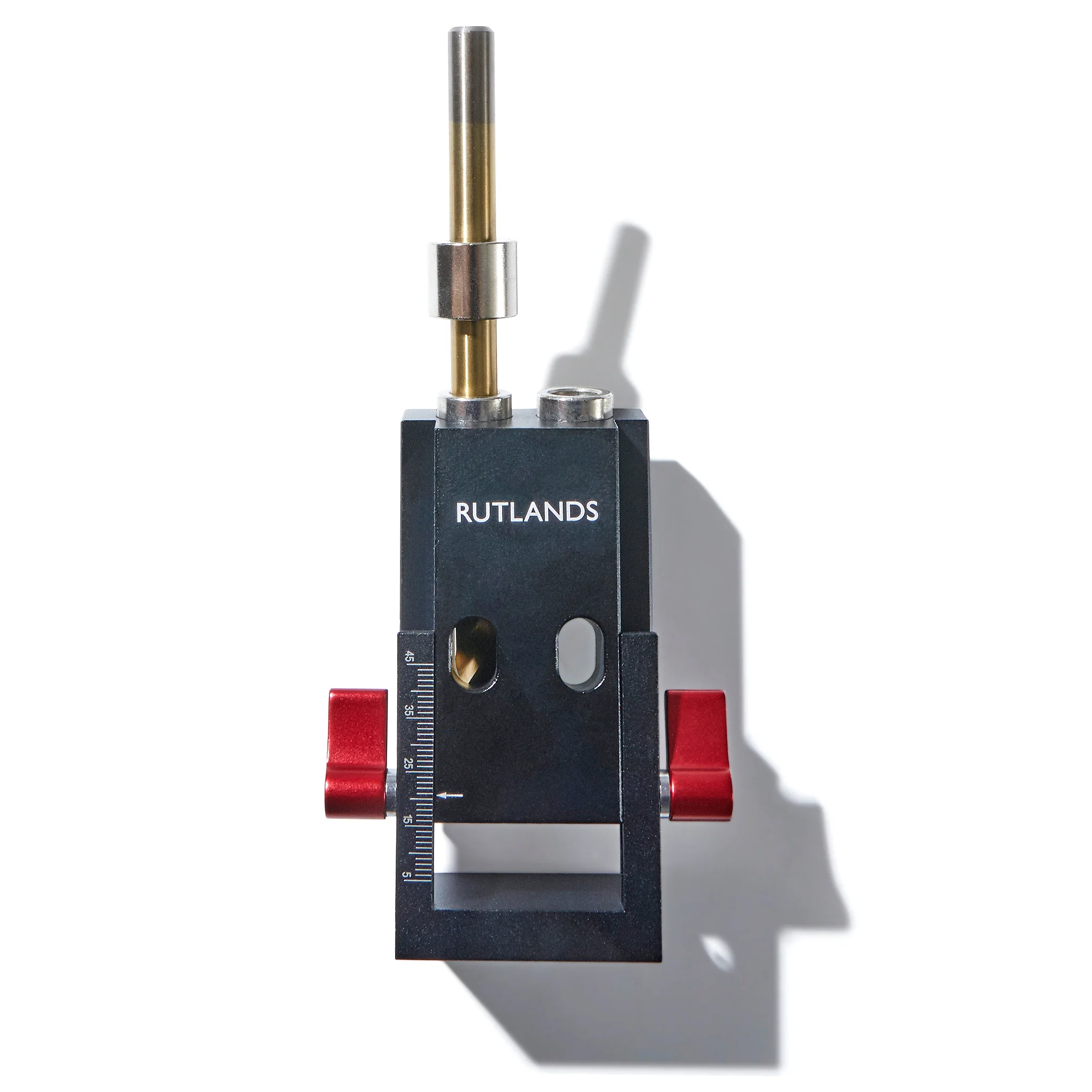

Manufactured from CNC machine aircraft-grade aluminium this is the finest and most precise portable pocket hole jig. This jig allows you to produce incredibly strong, precise and clean joints when making kitchen cabinets, wardrobes, book cases and other furniture.

As pocket hole joints require no glue, the joints can be easily dismantled at any time. This jig is designed to produce fast and accurate pocket holes in timbers from 12.7mm to 38mm thick. It has the advantage that it works as a workshop pocket hole jig for jointing standard frames and as a portable jig when jointing work that is too big to fit in a clamped-in pocket hole jig. It is also great for repair work where the existing joint cannot be dismantled. Beautifully finished in black electro-coating the jig features laser etched metric graduations.

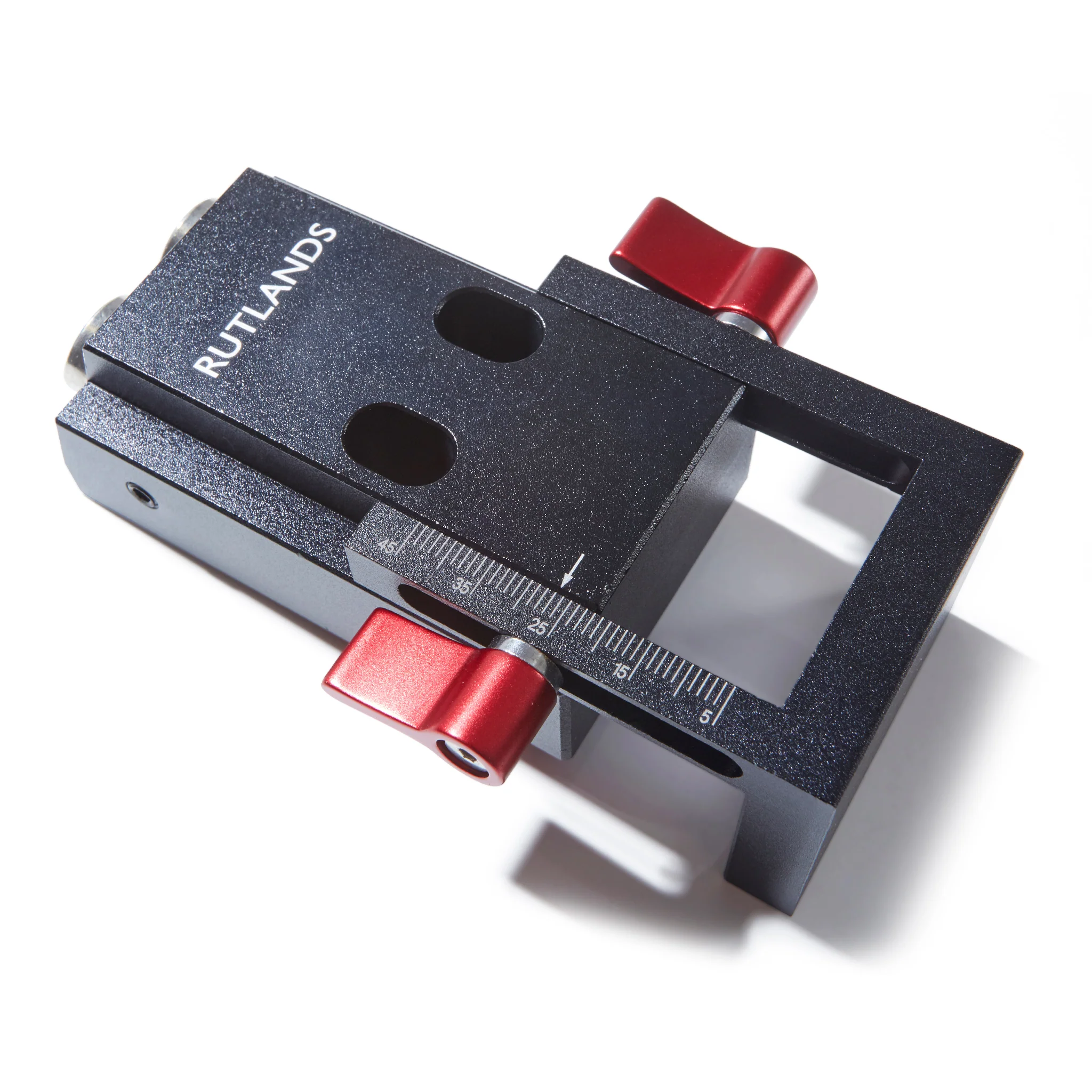

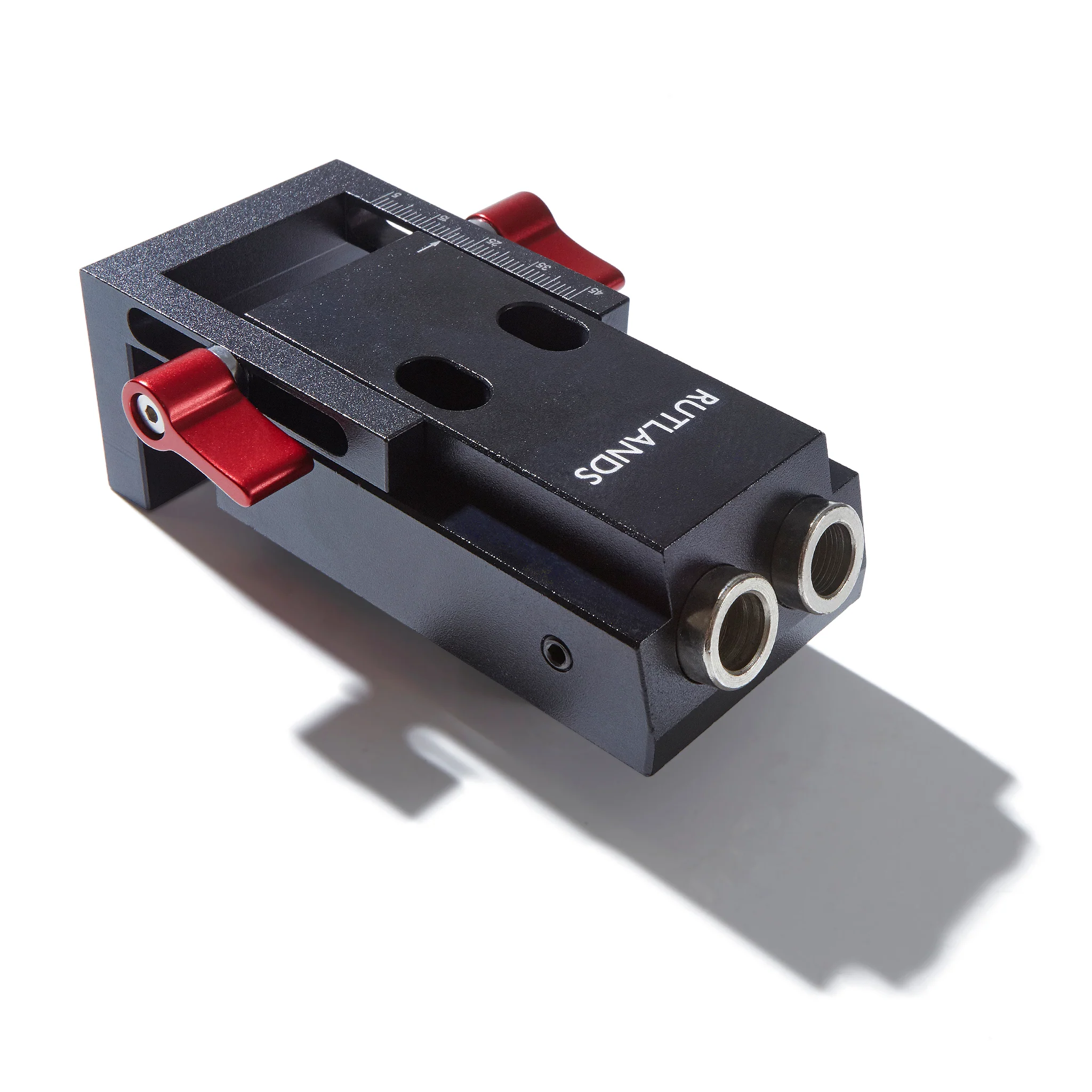

To set up the correct drilling angle of the jig, simply measure the width of your wood and then slide body of the jig to match the measurement on the etched graduated scale, it could not be simpler. The drilling block features two hardened steel bushes to accept and guide the HSS stepped drill bit. A further two oblong holes machined into the face of the jig act as dust ports to prevent swarf from becoming trapped in the flutes of the drill bit.

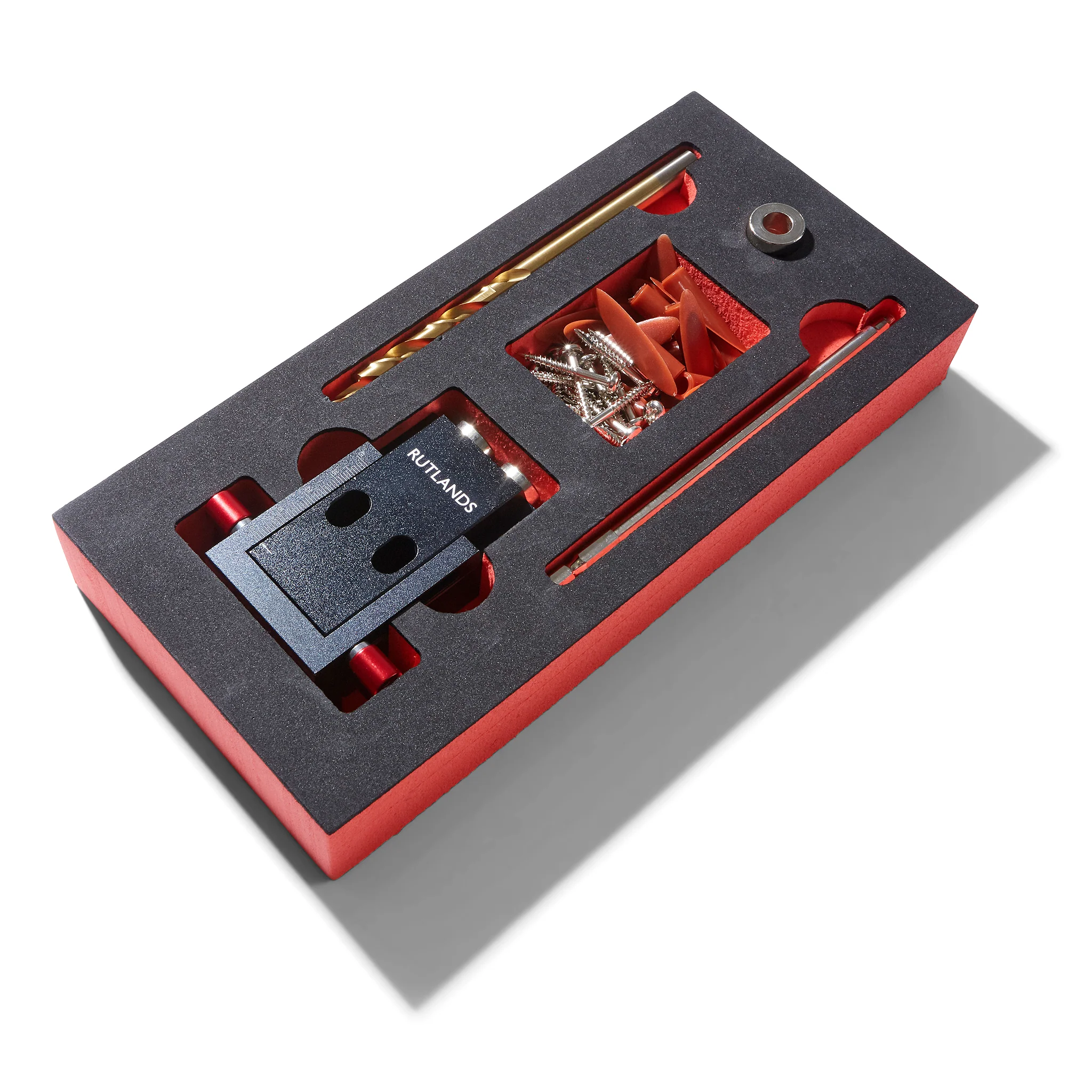

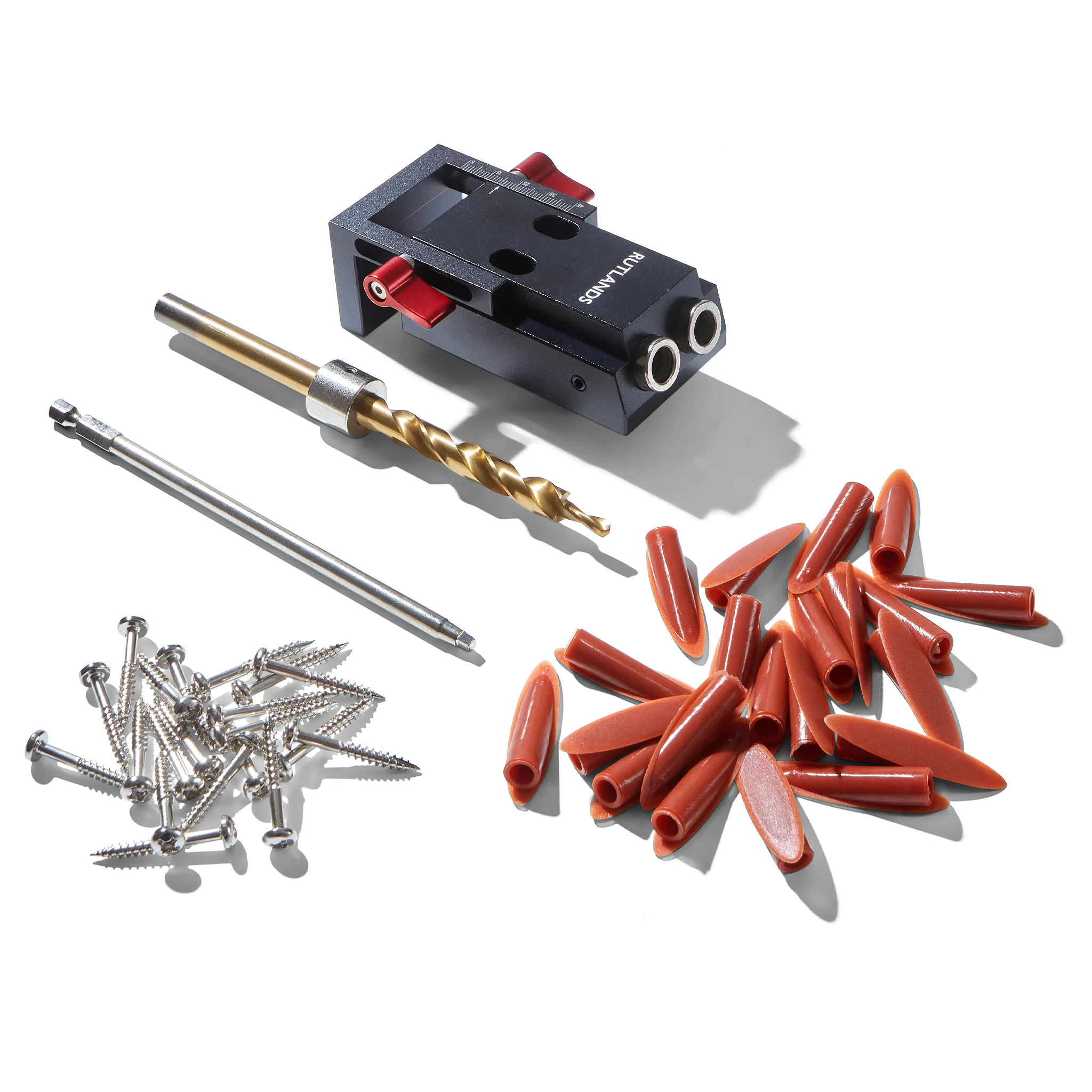

The body of the jig is hardened to accept the forces associated with being face clamped to the workpiece. This portable pocket hole kit comes complete with the aircraft-grade aluminium jig, titanium coated stepped drill bit, depth collar, square driver bit, screws and plugs. This is a precision jig that should not be compared to the array of low cost, budget jigs found elsewhere, if you want the finest portable pocket hole jig available. ©
