Headless Pinner 23 Gauge with Cordless 18V Compressor

Headless Pinner 23 Gauge with Cordless 18V Compressor

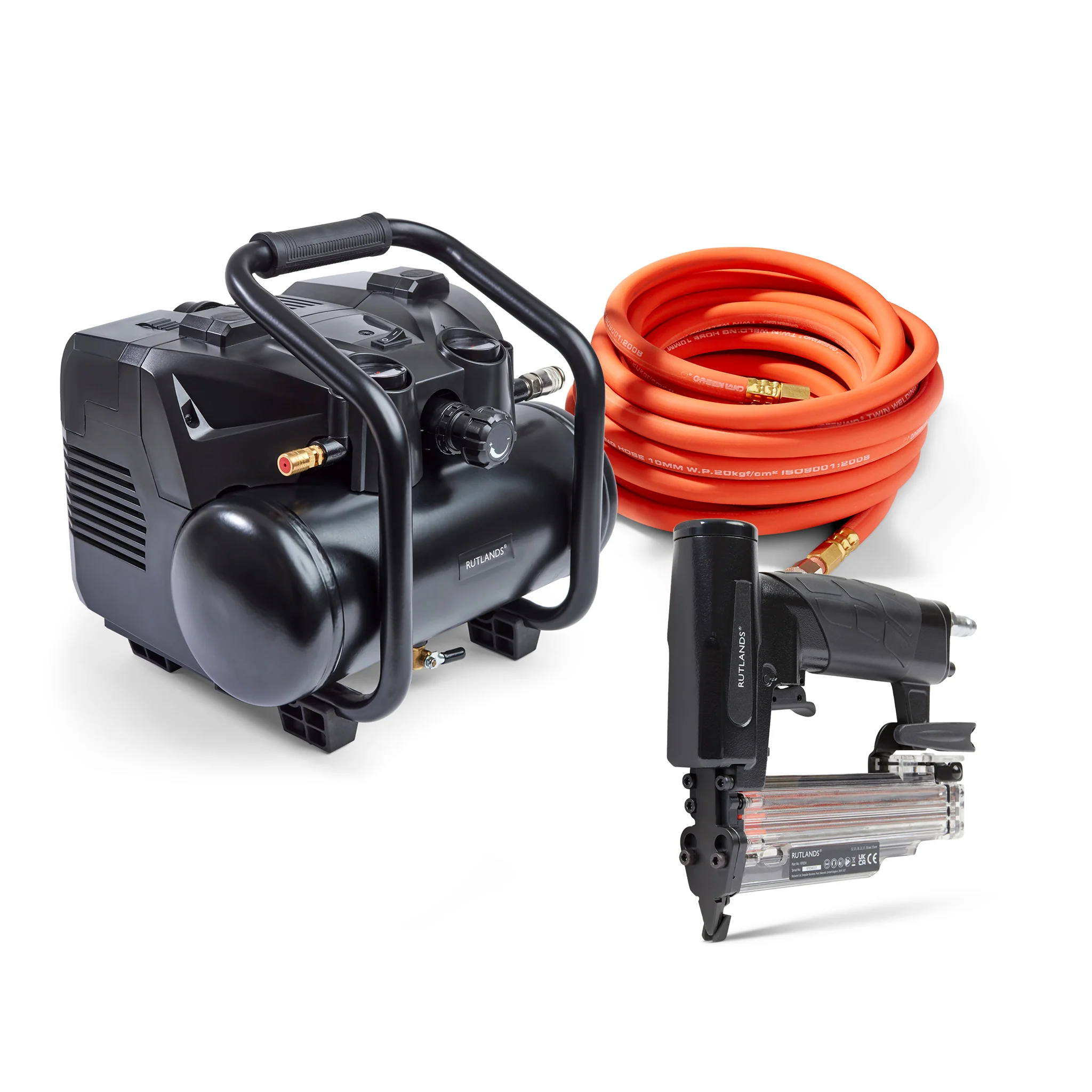

This kit combines an exceptional 23 gauge headless pinner with a brushless cordless 18V compressor, specifically designed for nailing operations. It also features 10 metres of highly flexible, non-marring air hose and all necessary quick connection fittings.

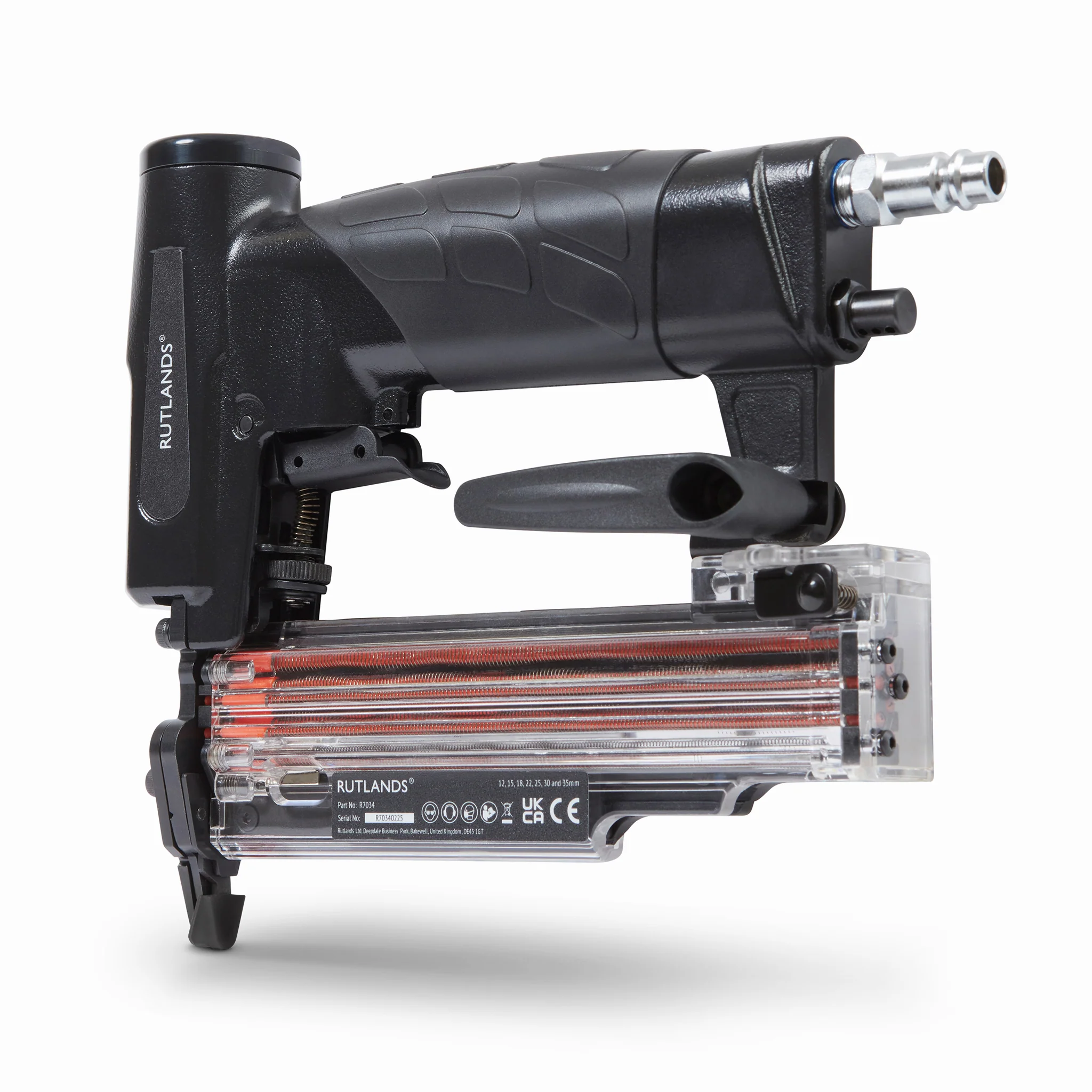

Headless Pinner 23 Gauge - 12mm to 35mm
The 23 gauge pneumatic headless pinner delivers near-invisible results, ideal for fixing decorative trim, fine mouldings, glazing beads or general intricate joinery. The pinner drives 0.6mm diameter headless pins, from 12mm to 35mm in length, eliminating the risk of splitting even the thinnest materials. Developed to meet the demands of professionals, the pinner features a high durability heat-treated firing pin, engineered to ensure consistent, long-lasting performance, reducing both downtime and maintenance.

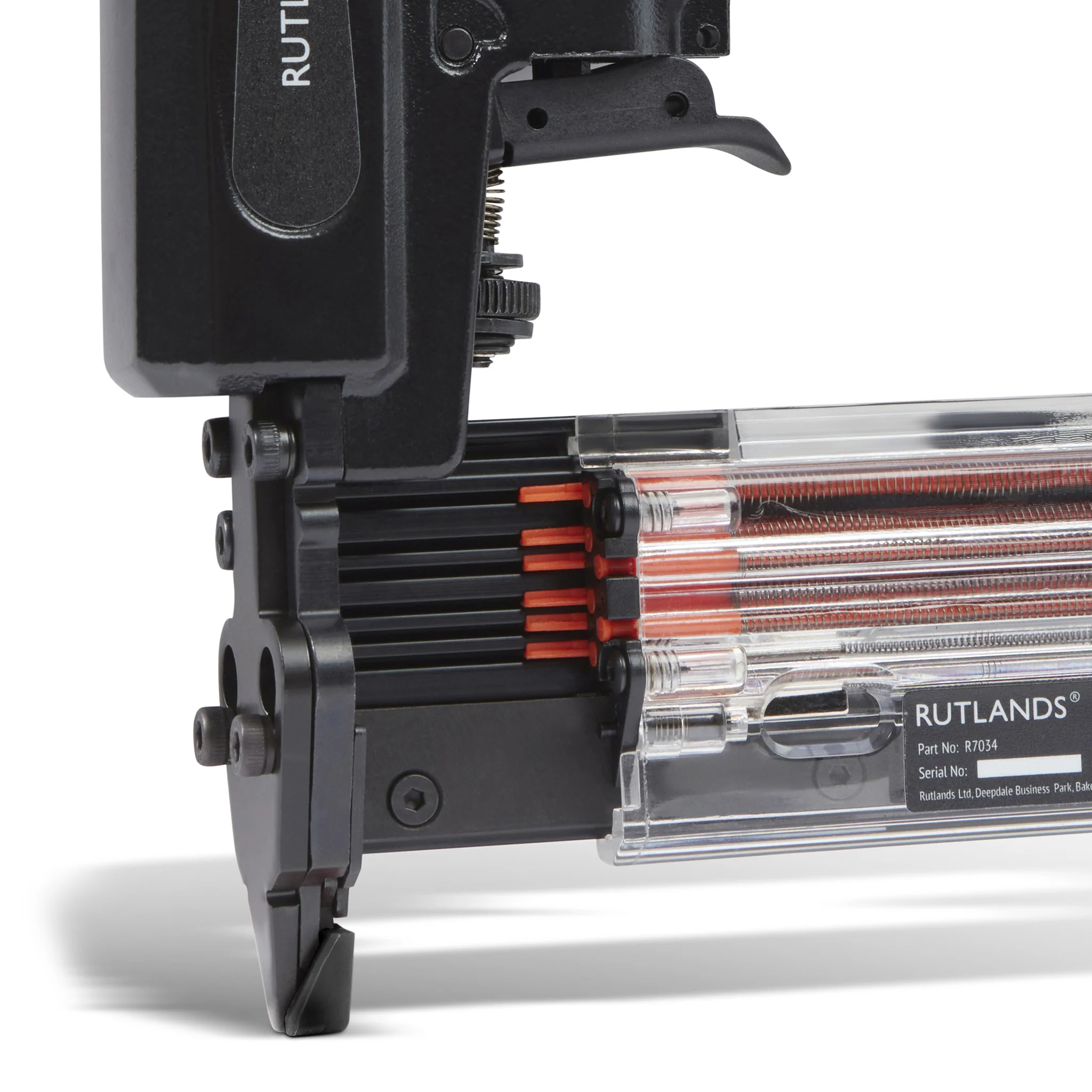

The side-loading magazine automatically adjusts for the pin length, providing quick and easy loading of up to 120 pins. The double trigger mechanism ensures operator safety, preventing against accidental firing during use. Depth adjustment is made tool-free, for near-instant switching between flush or countersunk firing. Dry fire lockout stops the pinner from firing when the magazine is empty, preventing damage to both the tool and the workpiece.

Ergonomically designed, the pinner combines robust build quality with a lightweight aluminium die-cast housing, resulting an in overall weight of only 0.8kg for reduced operator fatigue. The precision machined piston assembly provides smooth, kick-back free firing and a vibration emission level of only 1.91m/s2.

Brushless Cordless 18V Compressor - 6 Litre
The Rutlands® brushless cordless 18V compressor has been specifically designed for use with nail guns and delivers quiet, low vibration operation for a comfortable working environment. Supplied with two 18V 4Ah li-ion batteries and a dual port charger, the compressor uses 'high pressure technology' to deliver the power and performance of a larger compressor in a smaller, more portable package. Featuring both a high-efficiency 540W brushless motor and an oil-free pump, the compressor delivers simple, reliable and maintenance-free operation.

Delivering up to 53 litres of air per minute from 0 to 8 bar pressure, the compressor features two pressure gauges, one to measure the pressure in the 6 litre tank and the other to measure output pressure to the tool. Auto-restart technology automatically refills the air within the tank, ensuring the output pressure to the tool remains constant during use. With intelligent power management, the compressor will run at full power on just one battery, or both batteries can be used to double the runtime during longer tasks. With two batteries installed the compressor will deliver up to 1,500 shots per charge, and a run time of approximately 25 minutes. ©

$270.13

Original: $771.79

-65%
Headless Pinner 23 Gauge with Cordless 18V Compressor

$771.79

$270.13

Product Information

Shipping & Returns

Description

This kit combines an exceptional 23 gauge headless pinner with a brushless cordless 18V compressor, specifically designed for nailing operations. It also features 10 metres of highly flexible, non-marring air hose and all necessary quick connection fittings.

Headless Pinner 23 Gauge - 12mm to 35mm
The 23 gauge pneumatic headless pinner delivers near-invisible results, ideal for fixing decorative trim, fine mouldings, glazing beads or general intricate joinery. The pinner drives 0.6mm diameter headless pins, from 12mm to 35mm in length, eliminating the risk of splitting even the thinnest materials. Developed to meet the demands of professionals, the pinner features a high durability heat-treated firing pin, engineered to ensure consistent, long-lasting performance, reducing both downtime and maintenance.

The side-loading magazine automatically adjusts for the pin length, providing quick and easy loading of up to 120 pins. The double trigger mechanism ensures operator safety, preventing against accidental firing during use. Depth adjustment is made tool-free, for near-instant switching between flush or countersunk firing. Dry fire lockout stops the pinner from firing when the magazine is empty, preventing damage to both the tool and the workpiece.

Ergonomically designed, the pinner combines robust build quality with a lightweight aluminium die-cast housing, resulting an in overall weight of only 0.8kg for reduced operator fatigue. The precision machined piston assembly provides smooth, kick-back free firing and a vibration emission level of only 1.91m/s2.

Brushless Cordless 18V Compressor - 6 Litre
The Rutlands® brushless cordless 18V compressor has been specifically designed for use with nail guns and delivers quiet, low vibration operation for a comfortable working environment. Supplied with two 18V 4Ah li-ion batteries and a dual port charger, the compressor uses 'high pressure technology' to deliver the power and performance of a larger compressor in a smaller, more portable package. Featuring both a high-efficiency 540W brushless motor and an oil-free pump, the compressor delivers simple, reliable and maintenance-free operation.

Delivering up to 53 litres of air per minute from 0 to 8 bar pressure, the compressor features two pressure gauges, one to measure the pressure in the 6 litre tank and the other to measure output pressure to the tool. Auto-restart technology automatically refills the air within the tank, ensuring the output pressure to the tool remains constant during use. With intelligent power management, the compressor will run at full power on just one battery, or both batteries can be used to double the runtime during longer tasks. With two batteries installed the compressor will deliver up to 1,500 shots per charge, and a run time of approximately 25 minutes. ©
